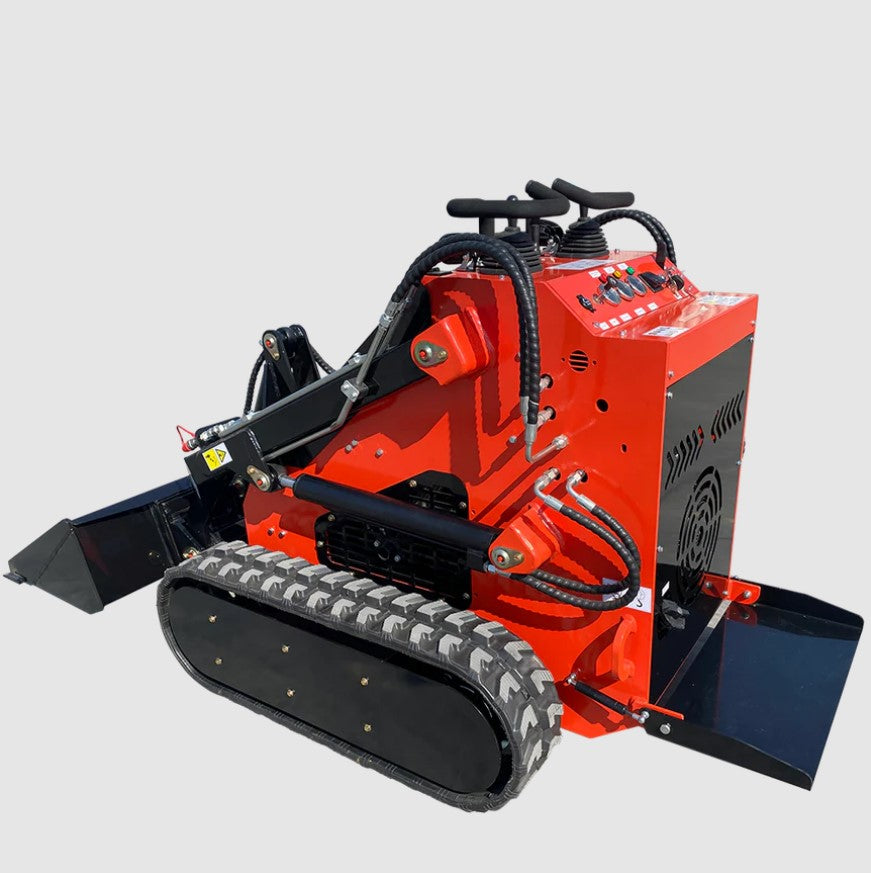

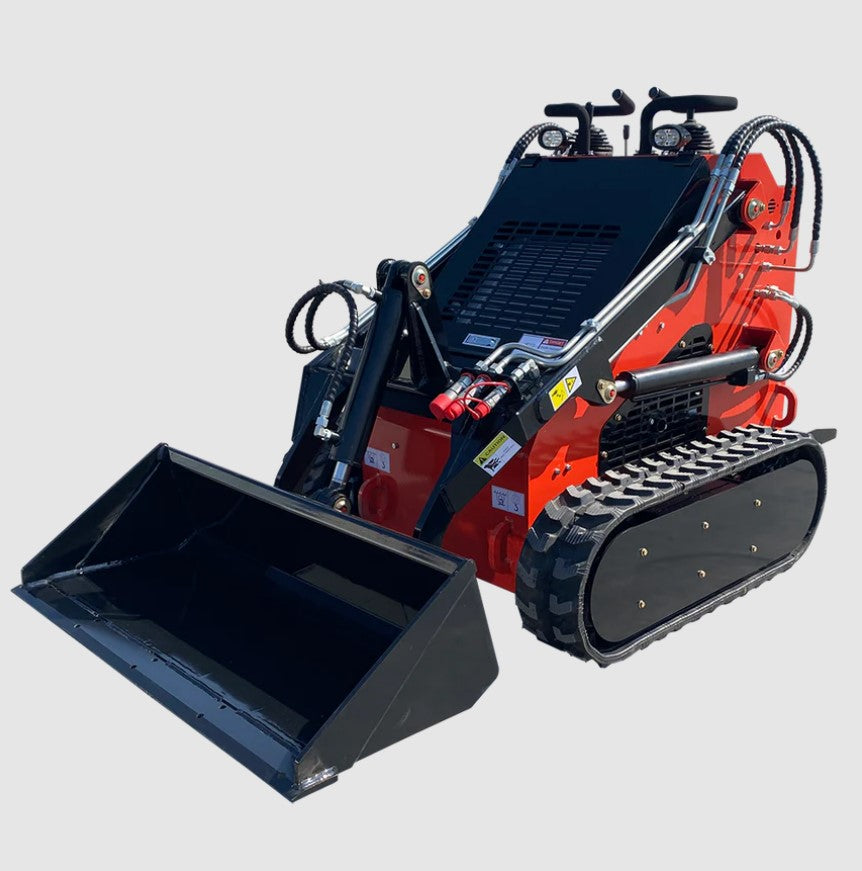

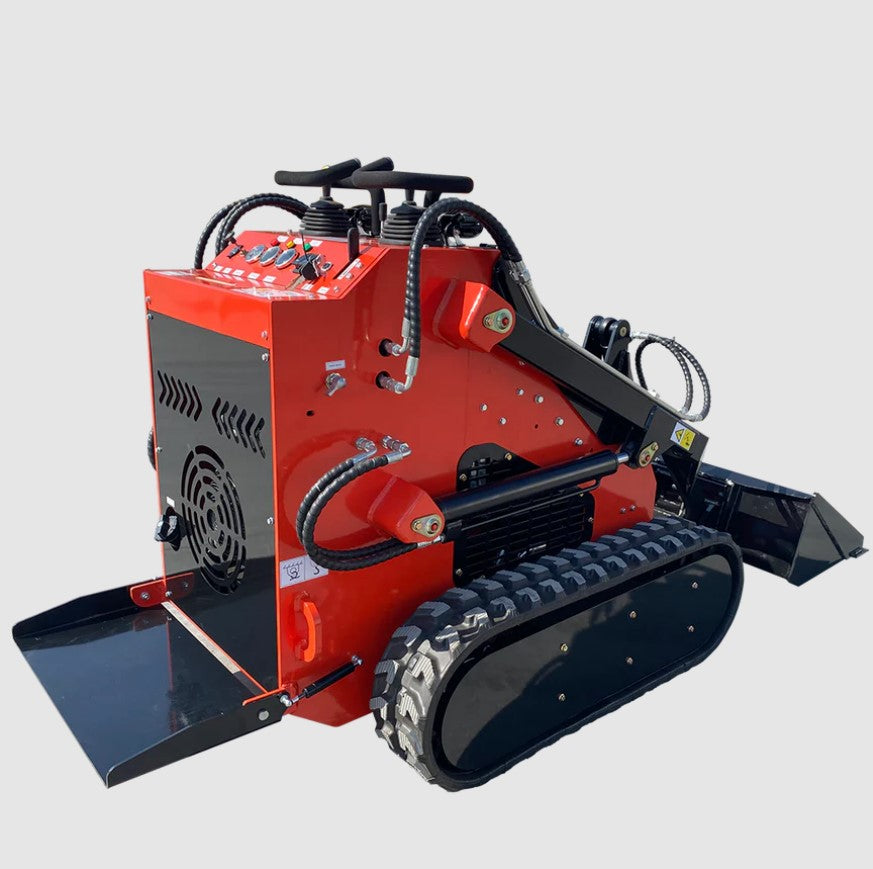

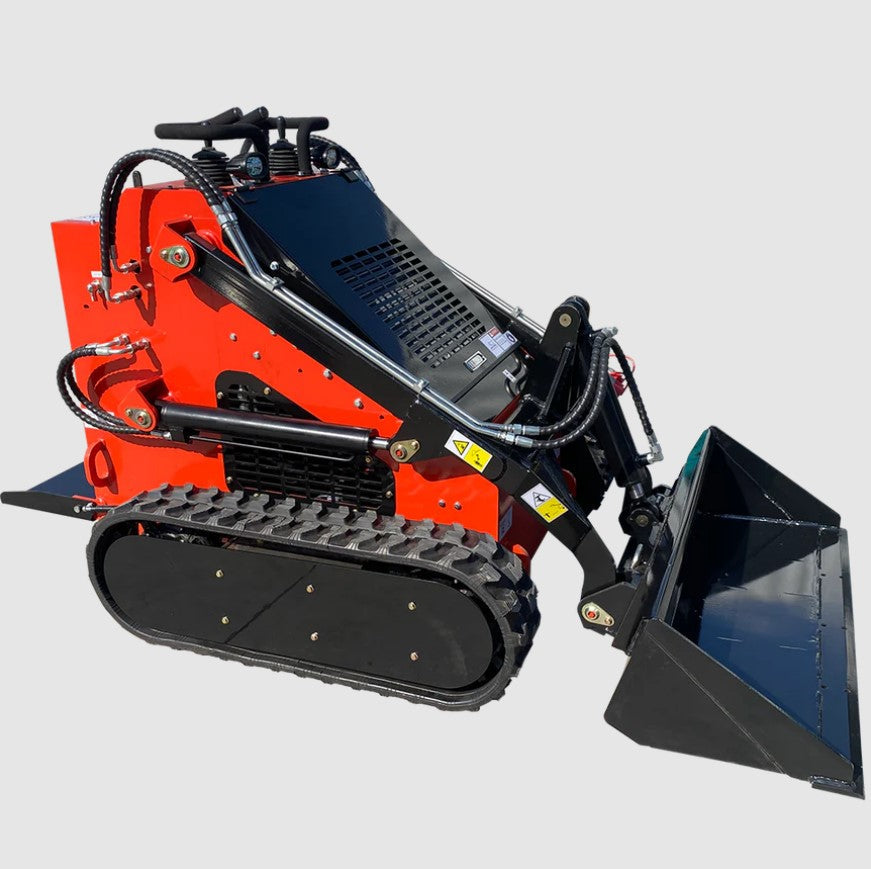

The AGT LBT23 is a stand-on mini skid steer loader powered by a 23 HP Briggs & Stratton engine, built for landscaping, farming, and snow removal in tight spaces.
At just 890 kg it transports easily and maneuvers in narrow areas, yet it delivers strong lift power, fast cycle times, and a high-performance hydraulic system. The stand-on platform gives great visibility and comfort through long work sessions.
Key Features
23 HP Briggs & Stratton engine: Strong power with efficient fuel use.
Lightweight & maneuverable: Just 890 kg for easy transport and tight access.

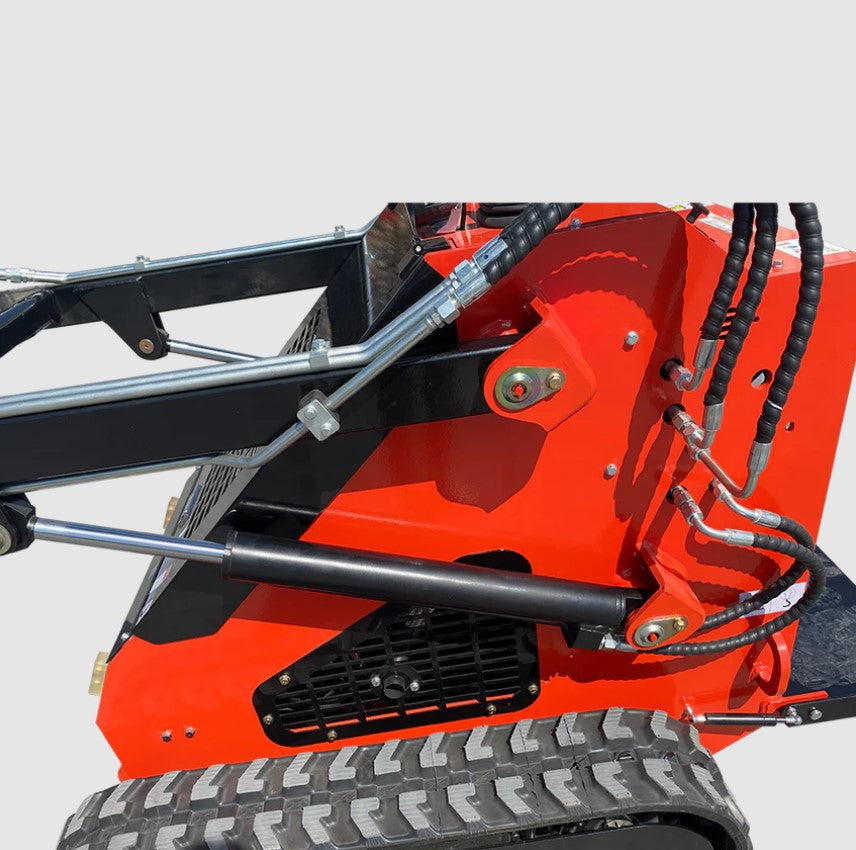

Strong lift power: Up to 375 kg with quick lifting and tipping cycles.

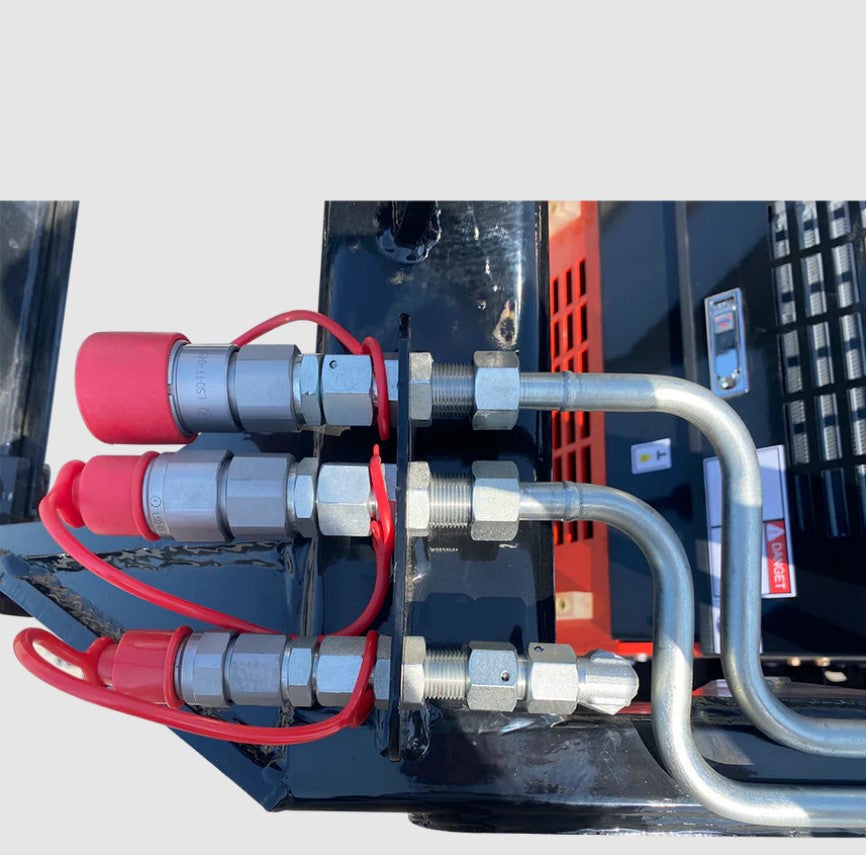

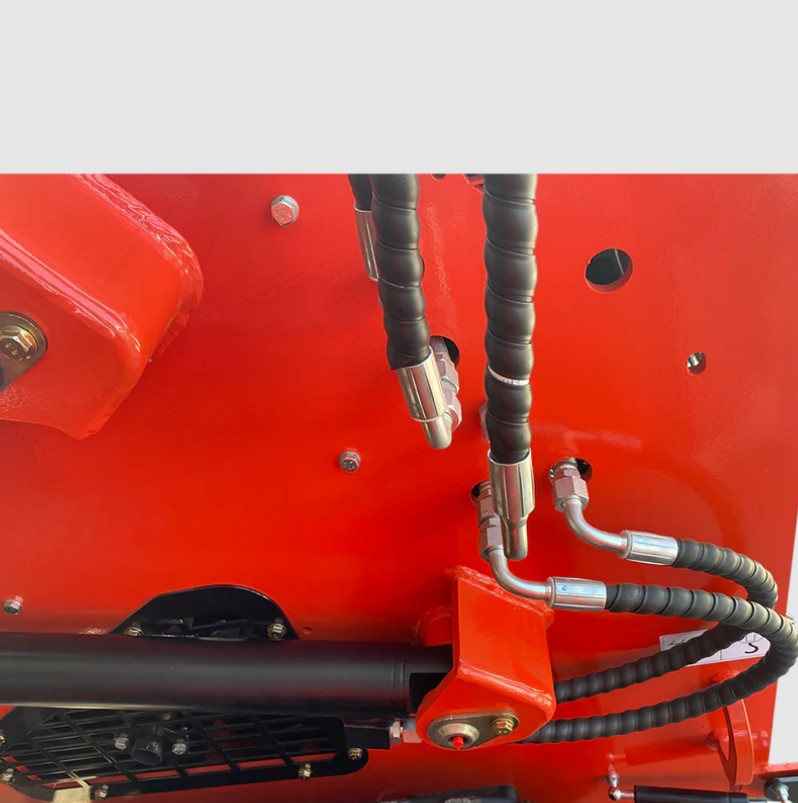

Gear-pump hydraulics: Rated at 22 MPa with 75.6 L/min flow.

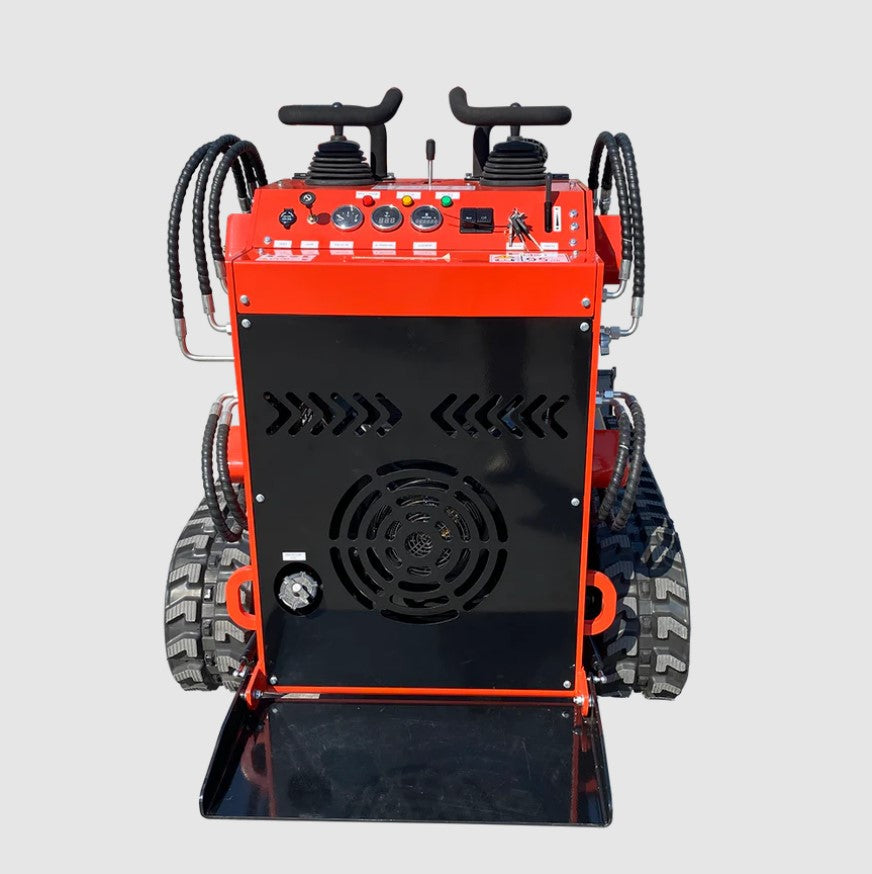

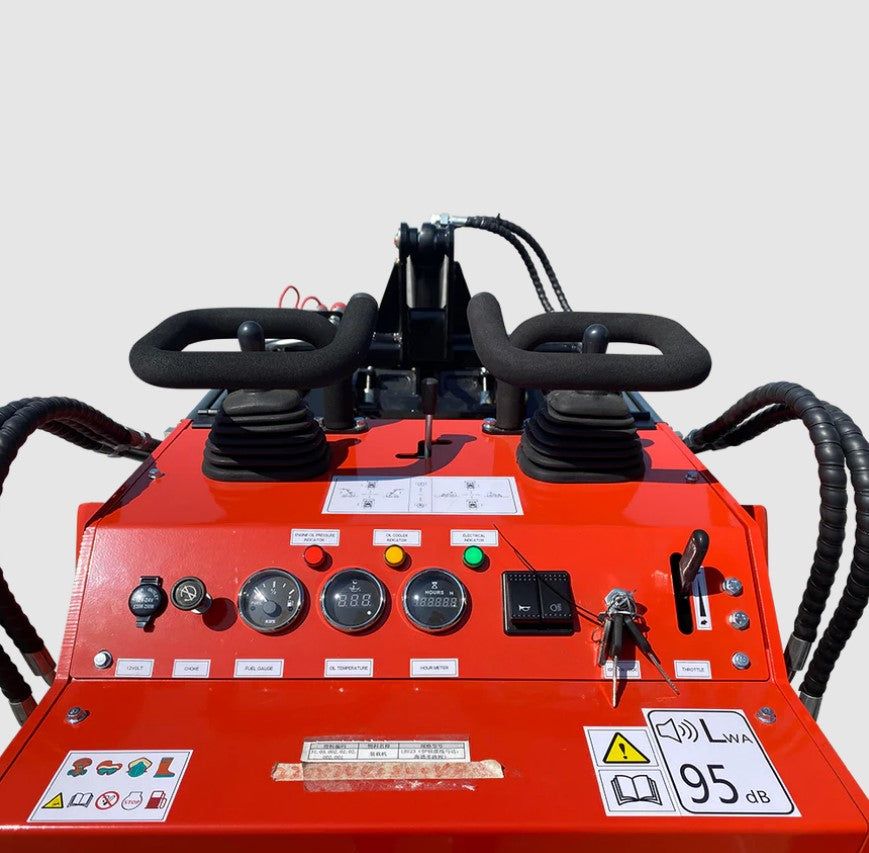

Electric start & stand-on platform: Effortless ignition and improved visibility.
Specifications
Engine: Briggs & Stratton 3864, 23 HP (17.1 kW)
Operating weight: 890 kg (approx. 1,962 lb)
Max lift capacity: 375 kg (approx. 827 lb)
Bucket capacity: 0.15 m³ (approx. 5.3 cu ft)
Hydraulic flow: 75.6 L/min (19.97 GPM)
Hydraulic pressure: 22 MPa
Fuel consumption: Up to 6.7 L/h
Fuel/hydraulic tanks: 25 L (approx. 6.6 gal)
Travel speed: 0–6 km/h (adjustable)
Climbing ability: 30%
